LCD Wall Mount RK3568 Android 11 Touch Screen Indoor Digital Signage For meeting
Appearance characteristics

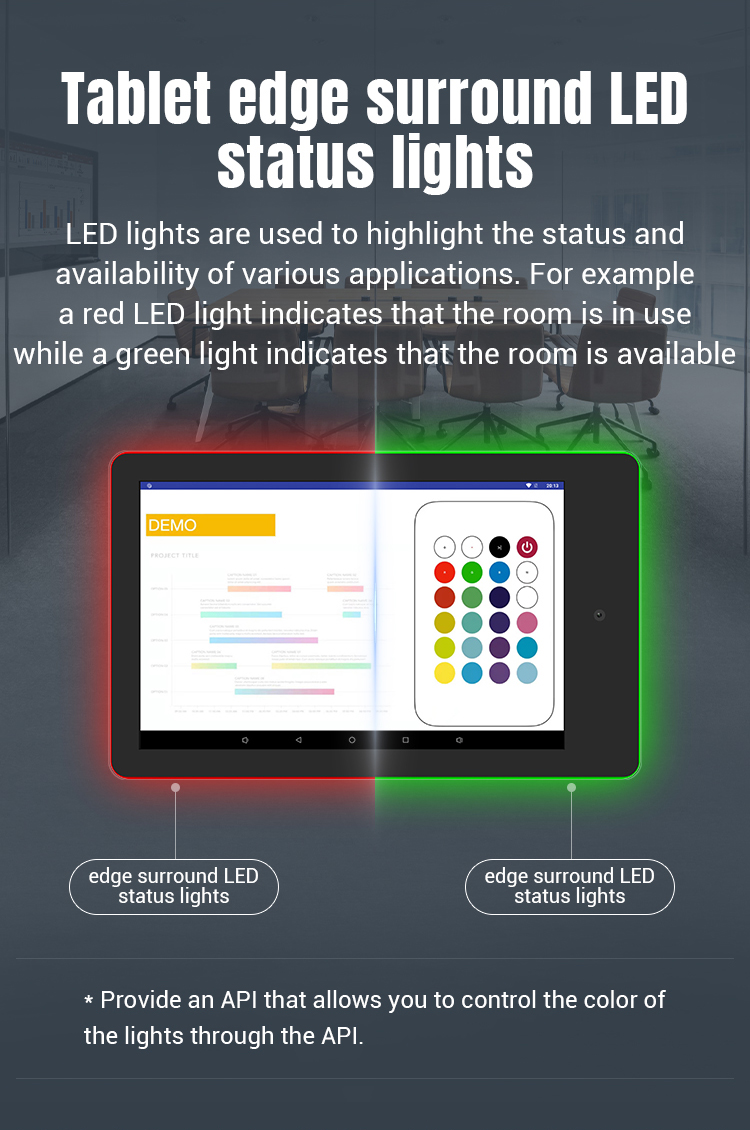

1. The LCD wall mount RK3568 Android 11 Touch Screen Indoor Digital Signage for meeting has the led light around the machine.

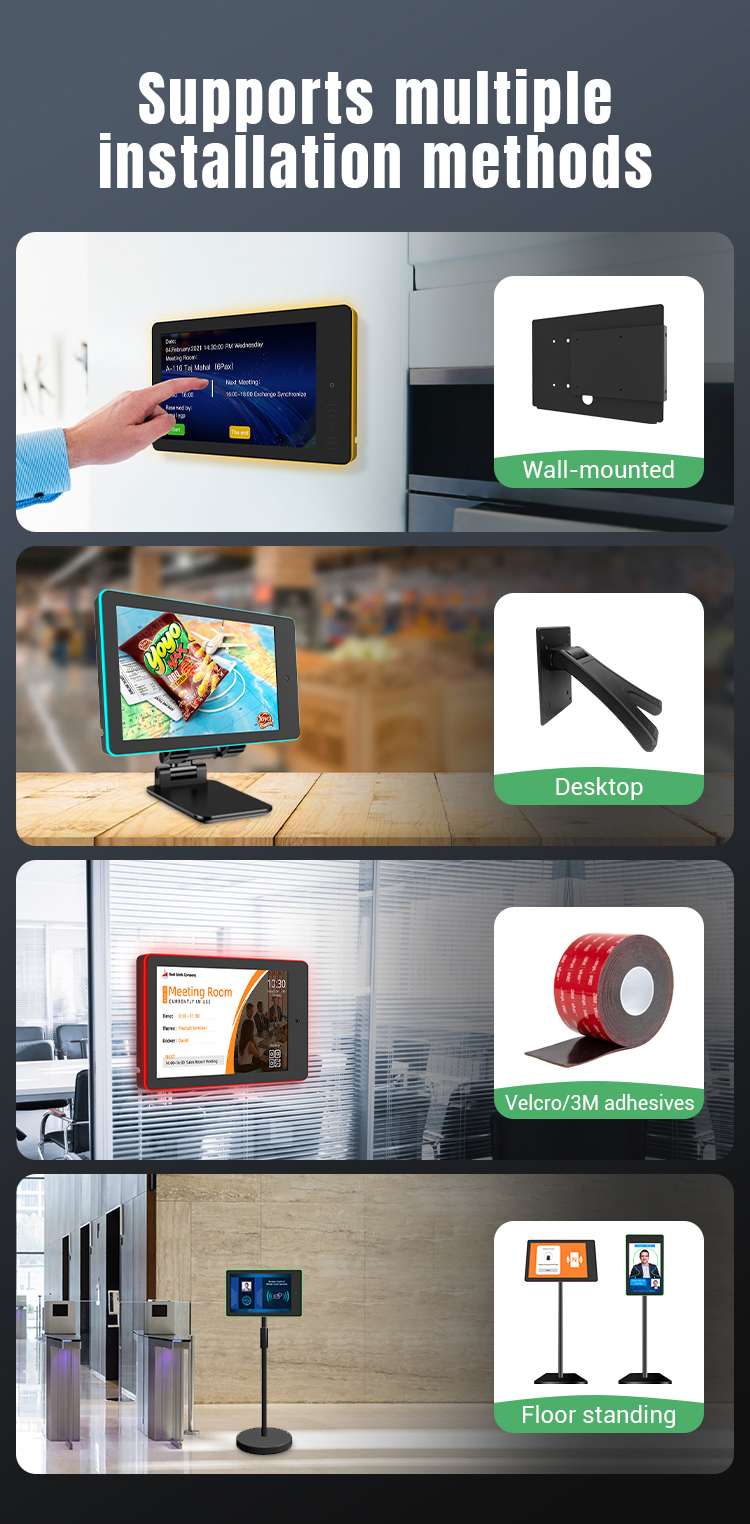

2. Easy to install: The body comes with a VESA hole that supports wall mounting and is worry free to install.
3. New shape: Elegant and slim,fits to any indoor usage scenario. The dual-screen advertising display is more than just a screen, it is a powerful business&marketing tool
4. Original Screen: Professional industrial dual screen digital signage display for Indoor and in elevators media networks deployment
Use Scenarios
1. Retail stores:By using our professional dual-screen advertising digital signage, you can show more details of your best selling product to your customers. It will make them enjoy the time spending in your store.
2. Elevator advertising digital signage: The dual-screen digital signage can display independently to reduce the visual fatigue of the viewer on a single image. The advertising video you put in the elevator will become an important pastime for customers when they take the elevator.
3. Consult us for more customized details:With ELC's customized service, you can choose from a variety of additional functions for your PRIVACY ad digital signage.
Software system
Our machine has strong CPU performance (Quad core processor).It can run all kinds of applications smoothly .Different memory configurations are available.

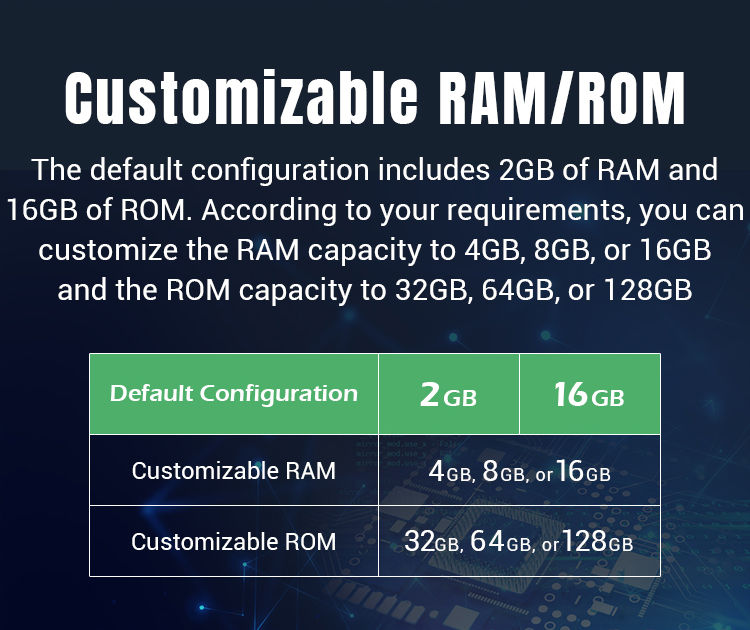

Standard configuration:
1. RK3568 Quad core cortex A55
2. 2+16G
3. Android 11 system
Hardware interface

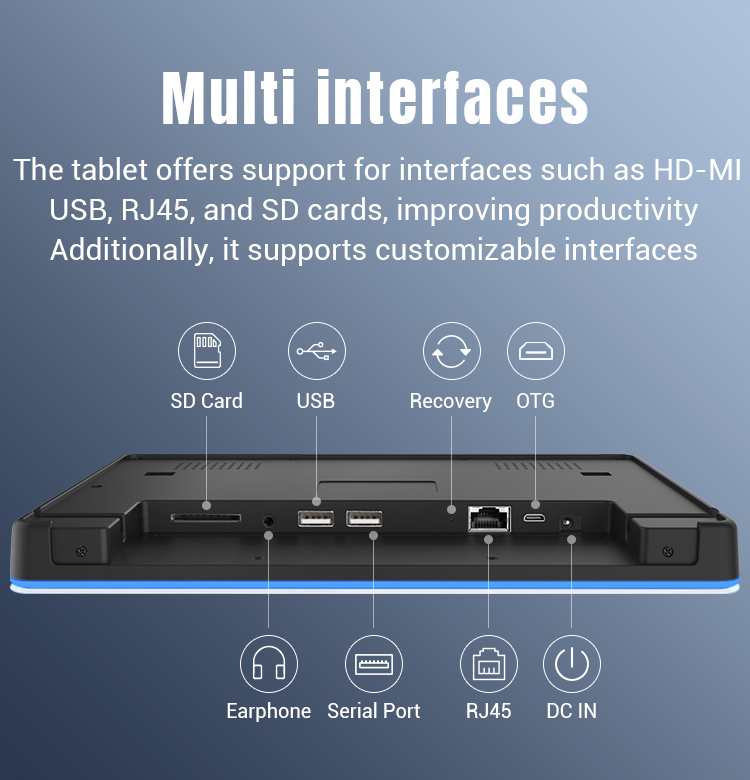

1. Interface:TF card, USB, serial port, OTG port, RJ45
2. Speaker:2*2W
3. Mic
4. Other customizable
| Display | 10.1” | Resolution | 1280*800 |
| Viewing angle | 85/85/85/85 (L/R/U/D) |
| Contrast ratio | 800:1 |
| Luminance | 250cd/m2 |
| Aspect Ratio | 16:10 |
| 8" | Resolution | 1280*800 |
| Viewing angle | 85/85/85/85 (L/R/U/D) |
| Contrast ratio | 800:1 |
| Luminance | 250cd/m2 |
| Aspect Ratio | 16:9 |
| Interface | Card slot | TF,support up to 32GB |
| USB | USB for serial (TTL Level ) |
| USB | USB host 3.0 |
| Type-C | USB OTG Function Onely |
| Power jack | DC power input |
| RJ45 | Ethernet interface |
| System | CPU | RK3568 Quad core cortex A55 |
| RAM+ROM | 2GB+16GB |
| Operation system | Android 11 |
| Touch screen | 10-Point capacitive touch ,Standard dual display with single touch ,optional dual display with dual touch |
| Network | WiFi | 802.11b/g/n |
| Ethernet | 10M/100M/1000M |
| Bluetooth | Bluetooth 4.2 |
| Accessories | Adapter | Adapter,12V/2A |
| User manual | yes |
| Other | Microphone | Single microphone ,optional dual microphone |
| Speaker | 2*2W |
| Camera | Front camera 5.0M/P |
| NFC | Optional |
| RFID | Optional |
| VESA | 75*75 mm |
| Certificates | CE, FCC |
